    High Voltage Insulated Ladder With Fiberglass Construction For Utility Workers

    Ask Lasest Price
    Brand Name : Suntech
    Model Number : Insulated
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 2000 PCS/Month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    High Voltage Insulated Ladder With Fiberglass Construction For Utility Workers

    High Voltage Insulated Ladder With Fiberglass Construction For Utility Workers


    The ​​Insulated Ladder​​ is an essential safety equipment for electrical utility workers performing live-line maintenance, power distribution repairs, and substation work. Designed specifically for high-voltage environments up to 36kV, this professional-grade ladder provides reliable insulation while ensuring stability and durability in demanding electrical applications.


    ​​Construction & Safety Features:​​

    • ​​Rails:​​ High-grade fiberglass with epoxy resin coating (100kV/ft dielectric strength)
    • ​​Rungs:​​ Molded fiberglass with textured non-slip surface
    • ​​Hardware:​​ Stainless steel brackets and fasteners with corrosion-resistant coating
    • ​​Feet:​​ Non-conductive rubber pads with adjustable leveling
    • ​​Safety Labels:​​ Bright orange color with voltage rating and warning markings
    • ​​Locking Mechanism:​​ Positive-lock system for extension ladders
    • ​​Weight Capacity:​​ 300 lbs (136 kg) working load


    ​​Technical Specifications:​

    • ​​Voltage Rating:​​ 10kV, 20kV, 36kV (customizable)
    • ​​Length Options:​​ 6ft to 16ft (1.8m to 4.9m)
    • ​​Weight:​​ 15-35 lbs (6.8-15.9 kg) depending on size
    • ​​Rung Spacing:​​ 12 inches (30.5 cm) OSHA compliant
    • ​​Standards Compliance:​​ ANSI A14.5, OSHA 1910.26, IEC 61478
    • ​​Operating Temp:​​ -40°F to +140°F (-40°C to +60°C)


    ​​Performance Advantages:​
    ✔ ​​Non-conductive materials​​ prevent electrical current flow
    ✔ ​​Slip-resistant rungs​​ ensure secure footing
    ✔ ​​Corrosion-resistant​​ for long service life
    ✔ ​​Lightweight yet sturdy​​ for easy handling
    ✔ ​​Weatherproof construction​​ for outdoor use
    ✔ ​​Meets all electrical safety standards​​ for utility work


    ​​Professional Applications:​

    1. ​​Live-line maintenance​​ - safe access to energized equipment
    2. ​​Substation work​​ - transformer and breaker maintenance
    3. ​​Power line repair​​ - overhead conductor work
    4. ​​Street light servicing​​ - fixture replacement
    5. ​​Emergency restoration​​ - storm damage repairs


    ​​Available Configurations:​

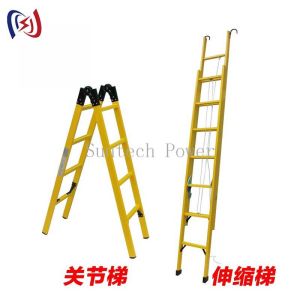

    • ​​Single section straight ladders​​ (fixed length)
    • ​​Extension ladders​​ (adjustable height)
    • ​​Platform ladders​​ (with work platform)
    • ​​Telescoping ladders​​ (compact storage)
    • ​​Custom voltage ratings​​ (up to 72kV)


    ​​Why Choose Our Insulated Ladder:​

    • Manufactured to IEEE 516 standards
    • Used by major utility companies
    • Annual dielectric testing recommended
    • 1-year warranty against material defects
    • Field-tested by electrical professionals


    Item number

    Product

    name

    ModelMaterial
    22248Insulated straight ladder

    2,2.5,3,3.5,

    4,5,6,7,8m

    Light epoxy resin
    22249Insulated telescopic ladder
    22258Insulated rise-fall ladder
    22259

    Insulated A-shape ladder
