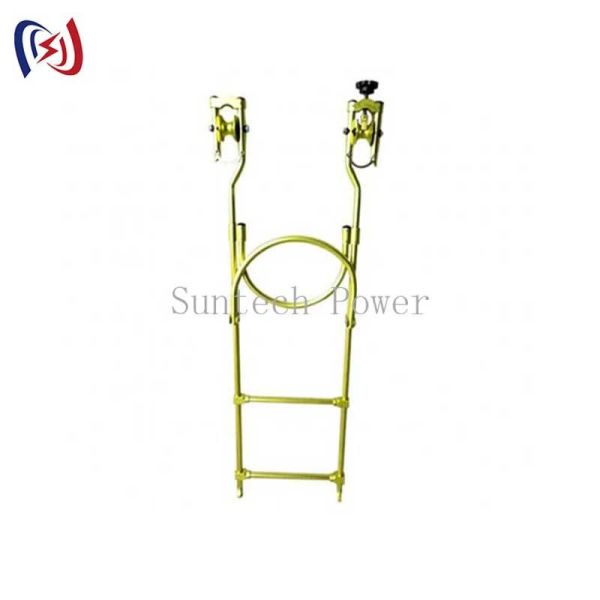

Adjustable Rope Ladder Trolleys For Various Diameter Conductors​

The ​​Hanging Rope Ladder Inspection Trolleys​​ are specialized equipment designed for safe and efficient inspection and maintenance of high-voltage power lines. These professional-grade trolleys provide secure attachment points for rope ladders, allowing utility workers to access overhead conductors while maintaining proper safety clearance.

​​Construction & Safety Features:​​

• ​​Frame Material:​​ High-strength aluminum alloy or fiberglass composite
• ​​Wheels:​​ Non-conductive polyurethane or nylon rollers
• ​​Attachment Mechanism:​​ Spring-loaded or screw-type conductor clamps
• ​​Safety Lock:​​ Positive engagement system prevents accidental release
• ​​Insulation:​​ Rated for 10kV to 36kV applications (customizable)
• ​​Load Capacity:​​ 300 lbs (136 kg) working load
• ​​Finish:​​ Powder-coated or anodized for corrosion resistance

​​Technical Specifications:​​

• ​​Conductor Compatibility:​​ 0.5" to 2.5" (12mm to 64mm) diameter
• ​​Weight:​​ 4.4-8.8 lbs (2-4 kg) per trolley
• ​​Standards Compliance:​​ ANSI Z359, OSHA 1910.269, IEC 61478
• ​​Temperature Range:​​ -40°F to +140°F (-40°C to +60°C)
• ​​Safety Factor:​​ 5:1 minimum breaking strength
• ​​Wheel Diameter:​​ 3-5 inches (76-127mm)

​​Performance Advantages:​​
✔ ​​Secure conductor attachment​​ prevents slippage
✔ ​​Smooth rolling action​​ for easy positioning
✔ ​​Non-conductive materials​​ ensure electrical safety
✔ ​​Durable construction​​ withstands harsh environments
✔ ​​Easy to install/remove​​ with one-hand operation
✔ ​​Compatible with standard rope ladders​

​

​​Professional Applications:​​

1. ​​Transmission line inspection​​ - visual and IR surveys
2. ​​Live-line maintenance​​ - conductor repair and hardware replacement
3. ​​Emergency repairs​​ - storm damage assessment
4. ​​Substation work​​ - bus and equipment access
5. ​​New construction​​ - line installation and tensioning

​​Available Configurations:​​

• ​​Single wheel trolleys​​ for lighter applications
• ​​Dual wheel trolleys​​ for increased stability
• ​​Insulated models​​ for live-line work
• ​​Heavy-duty versions​​ for bundled conductors
• ​​Custom designs​​ for special applications

​​Why Choose Our Inspection Trolleys:​​

• Manufactured to IEEE 516 standards
• Used by major utility companies
• Field-tested by line crews
• 2-year warranty against defects
• Replaceable wear components
